Scan-to-Fabrication for the Yorba Linda LDS Temple Stone Cladding

For the intricate Yorba Linda LDS Temple project, ScanTek 3D captured precise as-built conditions to generate individual custom fabrication tickets for every exterior stone panel and the complex, curved interior Baptistry font. This exact scan-to-fabrication workflow allowed masonry contractors to eliminate costly field cutting, material waste, and installation rework entirely.

How Does 3D Scanning Create Stone Fabrication Tickets?

Designing, fabricating, and installing zero-tolerance custom stone cladding for an entire building exterior leaves no room for error. High-end religious facilities like the Yorba Linda LDS Temple require absolute architectural perfection. Relying on theoretical 2D design plans for intricate masonry often leads to catastrophic misalignments during installation.

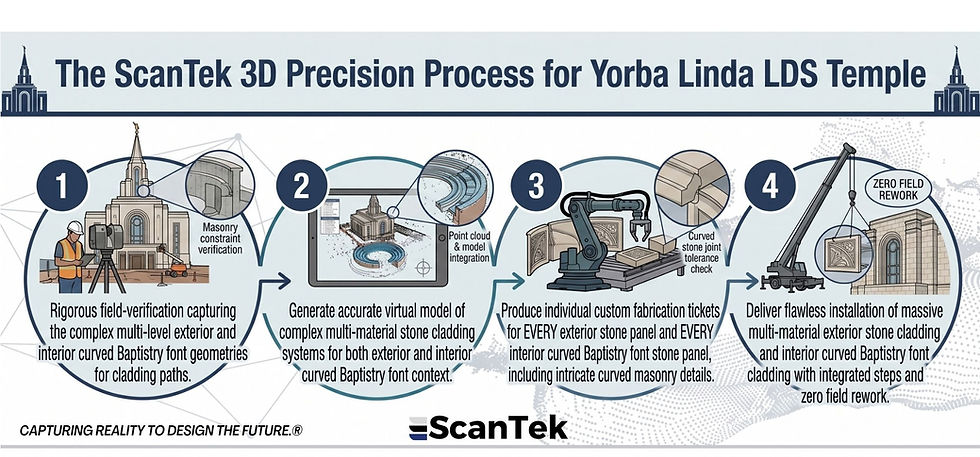

Our team deployed high-precision terrestrial laser scanners during the active construction phase. By capturing the exact as-built concrete and structural geometries, we bridged the gap between raw field data and flawless specialty fabrication.

What Were the Exact Deliverables for the Yorba Linda Temple?

We go far beyond delivering basic point clouds. To ensure the architectural stone fabricators could execute their work flawlessly, we translated the raw spatial data into highly actionable manufacturing instructions.

Our specific deliverables for the specialty masonry contractors included:

• Comprehensive 3D Models: Providing a highly accurate digital twin of the as-built exterior facade and interior structural conditions.

• Complete Architectural Drawings: Detailing exact dimensions and connection points for the complex stone cladding systems.

• Custom Fabrication Tickets: Generating individual, CNC-ready manufacturing tickets for every single piece of exterior stone panel cladding and interior Baptistry font stone.




Why is Reality Capture Critical for Curved Masonry and Fonts?

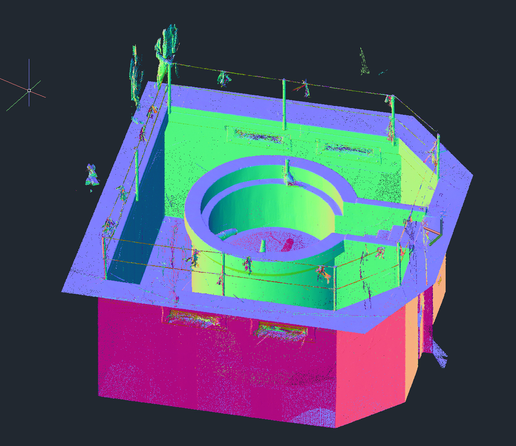

While flat exterior facades present their own challenges, the interior sunken Baptistry font required an entirely different level of precision. This feature involved highly complex, curved stone cladding with integrated stairs and tight radius walls.

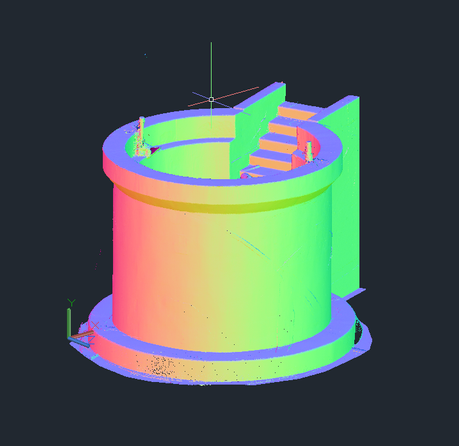

Curved masonry is exceptionally unforgiving. If the underlying concrete pour deviates even a fraction of an inch from the design, pre-cut stone panels will not align. By capturing the exact as-built geometry of the font, we ensured that the circular radius and intricate stair profiles were manufactured to the true field reality.

What is the ROI of Scan-to-Fabrication for Stone Cladding?

Stone is incredibly expensive, and modifying it on-site is a slow, high-liability process. By creating individual manufacturing tickets based on exact field reality rather than theoretical design, the stone fabricators could CNC and cut each panel perfectly off-site.

The direct return on investment for this scan-to-fabrication workflow included:

• Eliminated Field Cutting: Preventing dangerous and time-consuming on-site modifications to heavy custom stone panels.

• Perfect Radius Alignment: Ensuring complex curved surfaces like the font stairs and circular walls fit flawlessly upon delivery.

• Zero Material Waste: Protecting the project budget by ensuring no expensive specialty stone was ruined due to theoretical design clashes.

Eliminate Field Rework on Your Next Stone Project

Do not leave your zero-tolerance stone cladding to chance. Bridging the gap between the concrete structure and the CNC machine is the only way to guarantee a flawless, high-end finish.

Are you a specialty masonry contractor, architectural stone fabricator, or commercial architect? Contact ScanTek 3D today to get exact custom fabrication tickets generated directly from the field reality of your next complex masonry project.
